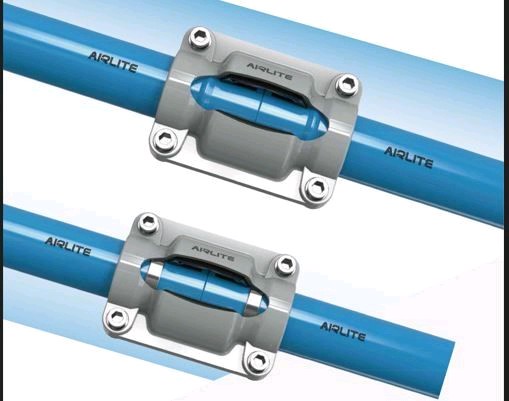

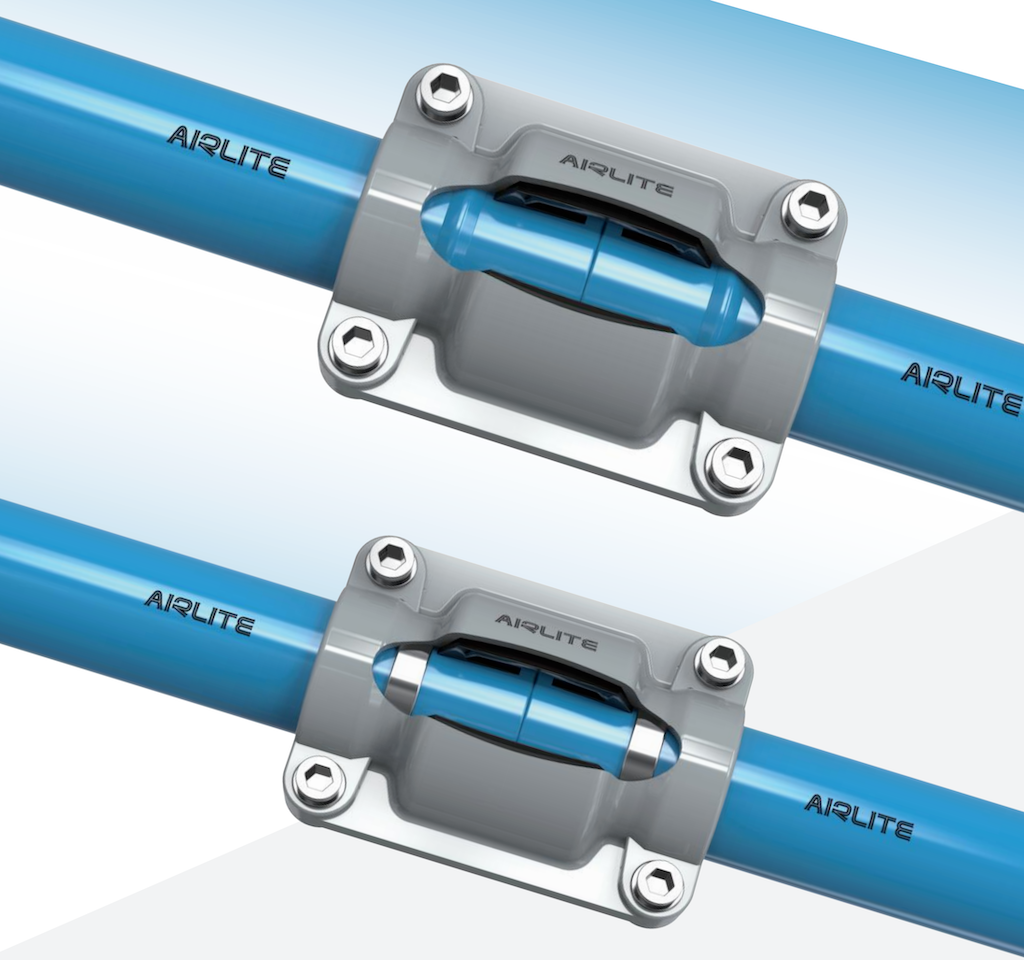

AirLite Compressed Air Aluminum Piping System
Zero Corrosion
Anodized aluminum alloy construction ensures zero rust, no oil contamination, and clean compressed air throughout the system's lifetime.
Rapid Installation
Modular push-to-connect fittings require no special tools, welding, or threading, reducing installation time significantly.
Energy Efficient
Smooth inner bore minimizes pressure drop and turbulence, reducing compressor energy consumption and improving overall efficiency.
Every component is designed with industrial performance, operator safety, and long-term value in mind.
Pipe Specifications
| Parameter | Specification |
|---|---|
| Material | Aluminum Alloy 6063-T5 |
| Size Range | DN15 - DN200 (½" - 8") |
| Pipe Length | Standard 5.8m; Custom available |
| Working Pressure | Up to 16 bar (232 psi) |
| Test Pressure | 1.5× Working Pressure |
| Temperature Range | -20°C to +80°C |
| Surface Treatment | Anodized (natural / color-coded) |
| Wall Thickness | 1.5 - 5.0 mm (size-dependent) |
Fitting Specifications
| Parameter | Specification |
|---|---|
| Body Material | Die-cast Aluminum Alloy |
| Seal Material | NBR O-ring |
| Connection Type | Push-fit / Groove-connect |
| Fitting Types | Elbow 90°/45°, Tee, Reducer, End Cap, Coupler, Valve |
| Thread Standard | BSP / NPT (½" - 4") |
| Coating | Epoxy powder coated (blue / custom) |
| Burst Pressure | ≥ 4× Working Pressure |
| Certification | CE, ISO 9001, PED/2014/EU, ASME B31.1, B31.3 & B31.9 |
* Flow rate at 7 bar working pressure, velocity 8 m/s. All specifications subject to revision. Contact us for the latest datasheet.
Application Fields
AirLite is trusted across diverse industries wherever clean, reliable compressed air distribution is critical.
Manufacturing & Assembly
Pneumatic tools, robotic arms, CNC machinery and production line air supply networks in automotive and electronics factories.
Food & Beverage Processing
Oil-free, rust-free aluminum ensures hygienic compressed air for food-grade packaging, bottling and processing applications.
Commercial Buildings & Workshops
Service stations, maintenance workshops, tire shops and commercial garages benefit from fast installation and neat aesthetics.
Pharmaceutical & Cleanrooms
Anodized surface and zero corrosion make AirLite ideal for ISO-classified cleanrooms and pharmaceutical manufacturing environments.
Energy & Power Plants
Instrumentation air, control systems and pneumatic actuators in power generation facilities, including solar and wind energy installations.
Medical & Dental Facilities
Medical-grade compressed air distribution for hospitals, dental clinics and laboratory environments with stringent purity requirements.
